Fraunhofer Unveils Ultra-Efficient Membrane Technology for Low-Energy Gas Drying
Fraunhofer’s membrane-based drying technology removes water from gases without chemicals or high heat, enabling cleaner, faster, and far more efficient processing.
www.fraunhofer.de

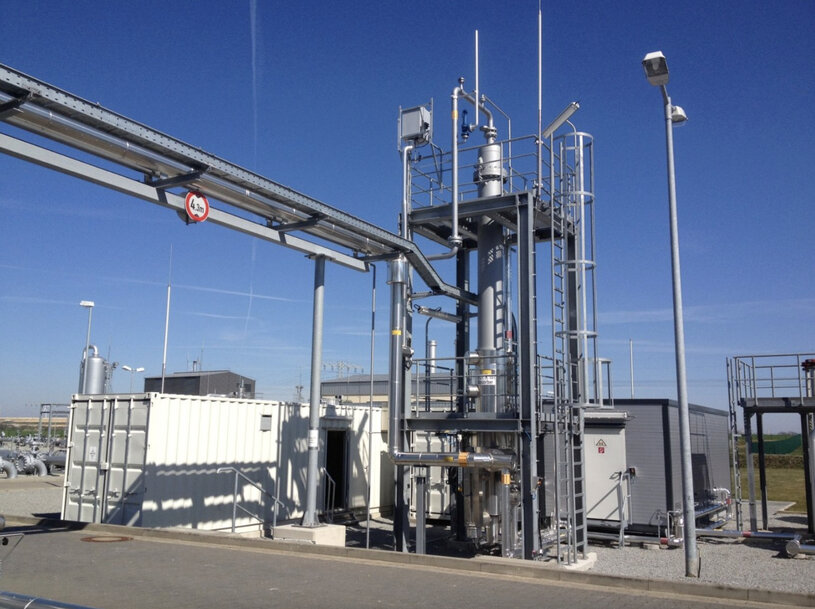

© Fraunhofer IKTS: Pilot plant in Stassfurt, where gas is dried using ceramic membranes.
A cleaner alternative for natural gas, biomethane, and hydrogen processing
Fraunhofer researchers have developed a membrane-based drying technology that replaces conventional triethylene glycol (TEG) processes and eliminates the need for high-temperature distillation. Designed for natural gas, biomethane, and hydrogen applications, the innovation enables operators to remove moisture quickly and reliably while dramatically lowering energy demand and operational emissions.
Nanoporous membranes engineered for precise water separation
Instead of relying on chemicals and 200 °C regeneration cycles, the new system channels gas through a ceramic tube coated with an ultrathin nanoporous membrane. Water molecules—significantly smaller than methane, hydrogen, or other gas molecules—pass through pores just 0.4 nanometers in size and migrate through the ceramic carrier to the outside. This selective permeability enables efficient drying without thermal cracking, residue incineration, or carbon emissions.

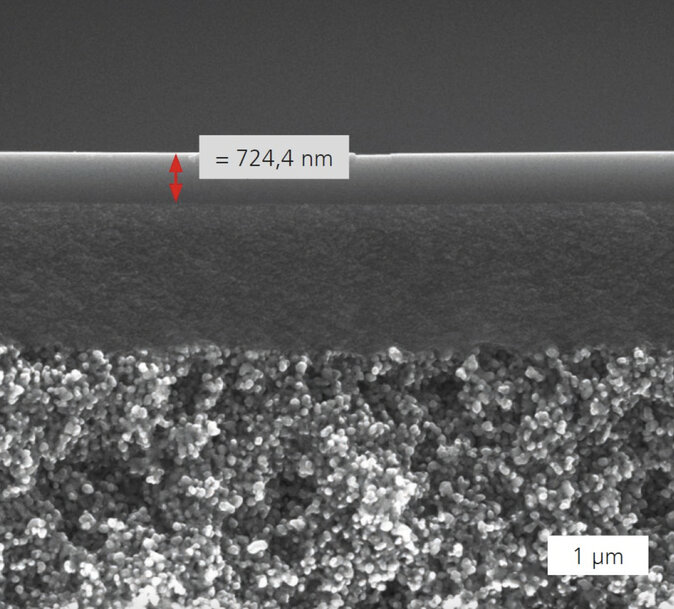

© Fraunhofer IKTS: SEM image of a carbon membrane used to separate liquid components from biomethane.
Researchers created two membrane variants tailored to application needs: a carbon-based membrane optimized for biomethane, and a zeolite-based membrane suited for natural gas and hydrogen. Each requires precise material deposition and controlled heat treatment to form a sealed, defect-free selective layer capable of stable long-term operation.
Energy savings of up to 90 percent
By eliminating TEG handling, high-temperature regeneration, and off-gas combustion, the membrane system reduces energy consumption by as much as 90 percent compared with conventional gas-drying installations. The process also prevents equipment corrosion and valve malfunction by ensuring moisture-free gas streams prior to pipeline injection.

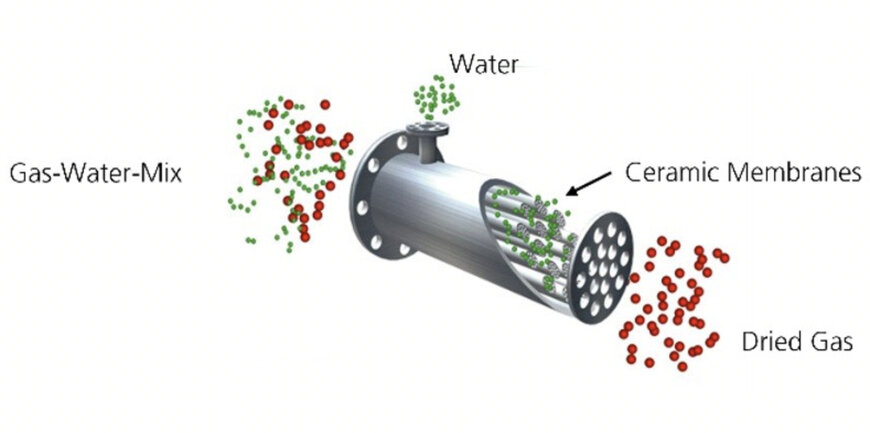

© Andreas Junghans GmbH / Fraunhofer IKTS: Ceramic membranes developed at Fraunhofer IKTS facilitate efficient, cost-effective gas drying.
Path toward industrial adoption
Fraunhofer IKTS is now scaling the technology from pilot plant level to industrial implementation. The institute offers support to pipeline operators, energy suppliers, and plant manufacturers seeking to integrate membrane-based drying into future gas infrastructure. Early testing in projects such as Hybiodirect and H2well-COMPACT has already validated the approach in real-world hydrogen and biomethane environments.
With its combination of technical efficiency, material stability, and low environmental impact, the Fraunhofer membrane technology presents a viable next-generation solution for gas drying in a rapidly expanding renewable energy landscape.
